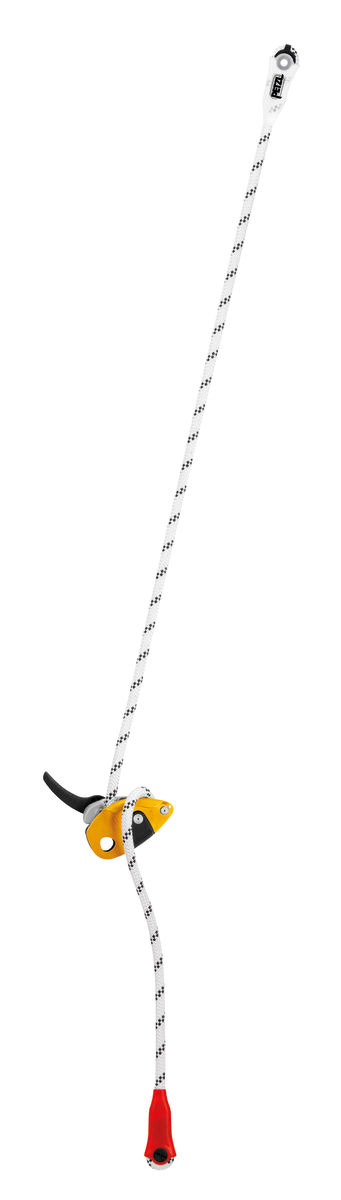

GRILLON
Adjustable lanyard for work positioning
The GRILLON adjustable lanyard is used to make work-positioning systems to complement a fall-arrest system. The length can be very easily and precisely adjusted as needed for comfortable positioning at the workstation. Depending on the configuration, it can be used in single or double mode. The GRILLON is available in seven lengths (2, 3, 4, 5, 10, 15 and 20 m), and also in black. It is certified to North American, European, and Russian standards.
Description
- Easy to use: the fine adjustment system allows length to be precisely adjusted for comfortable positioning at a workstation

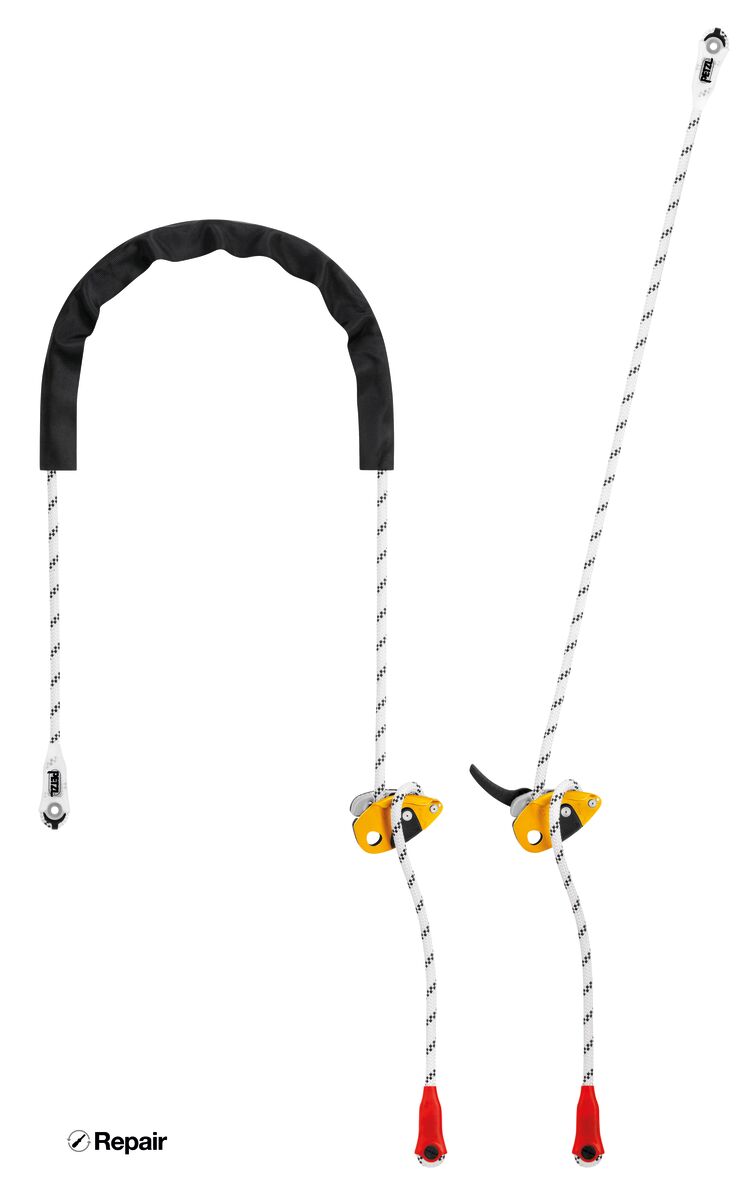

- Can be used in two ways:
– Double mode (on the harness side attachment points) when the user works with weight on their feet, providing improved load distribution on the waistbelt; length is adjusted by pressing on the pivoting cam

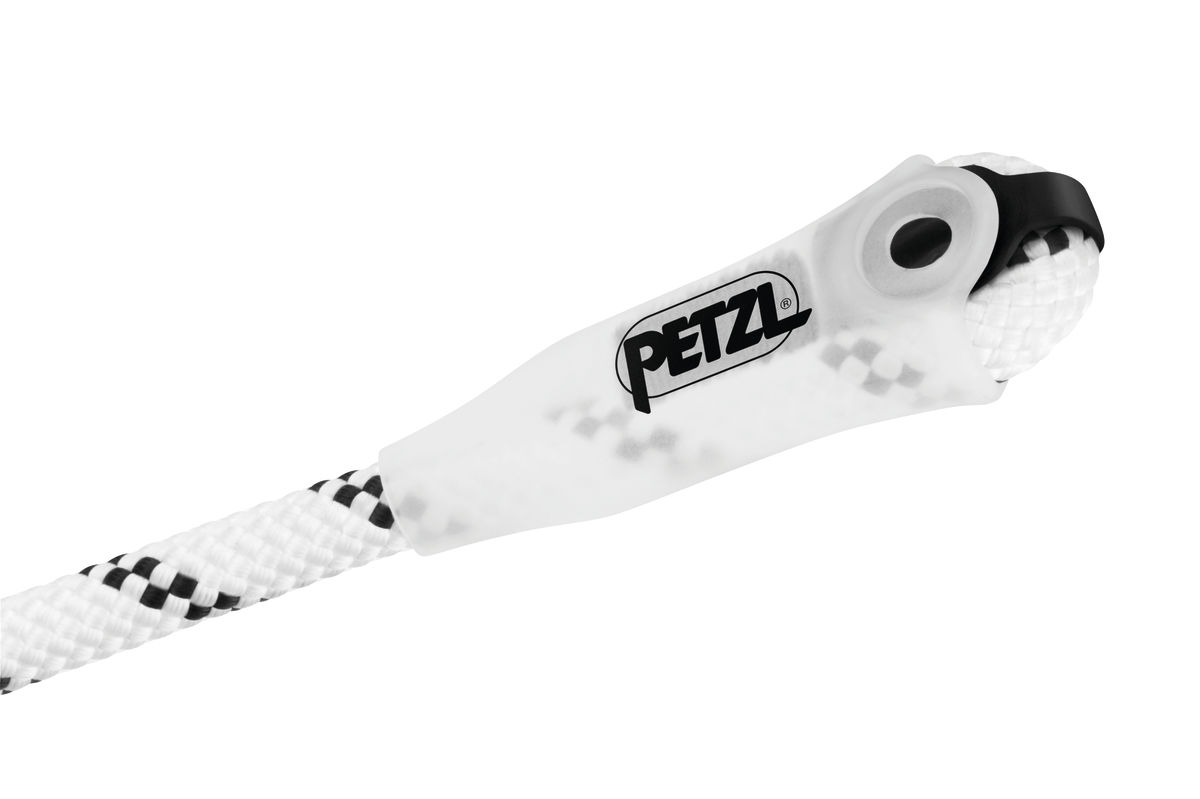

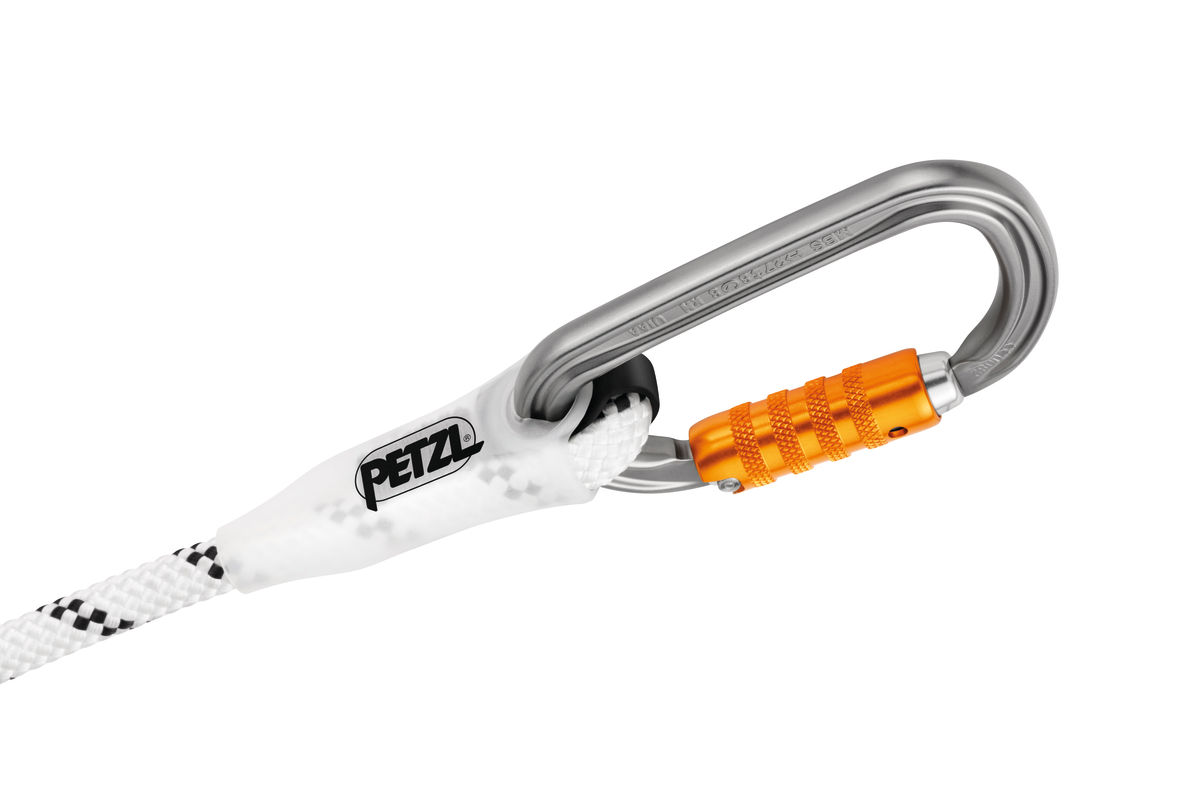

– Single mode (on the harness ventral attachment point) when the anchor is located above the user, so the load is comfortably distributed between the waistbelt and leg loops; length is adjusted by operating the handle while holding the free end of the lanyard - Sewn terminations on both ends with plastic sheath to keep the connector in position and protect the rope from abrasion

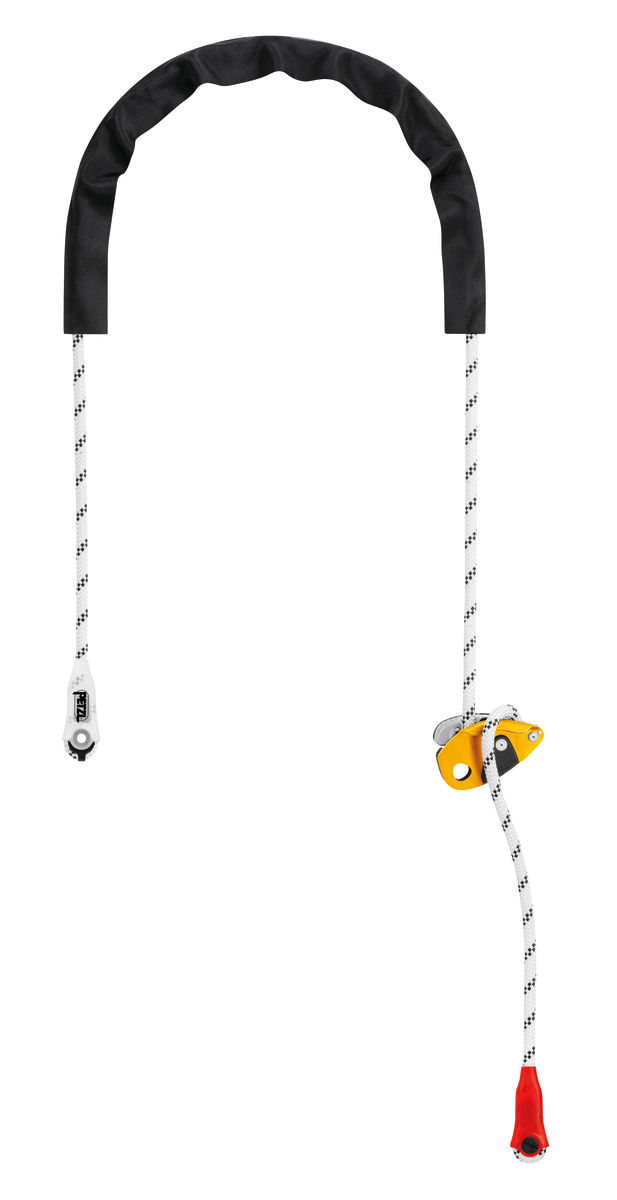

- Protective sheath protects the rope from abrasive contact and enhances rope glide; this protection can be removed for single mode use to bring the user closer to the anchor

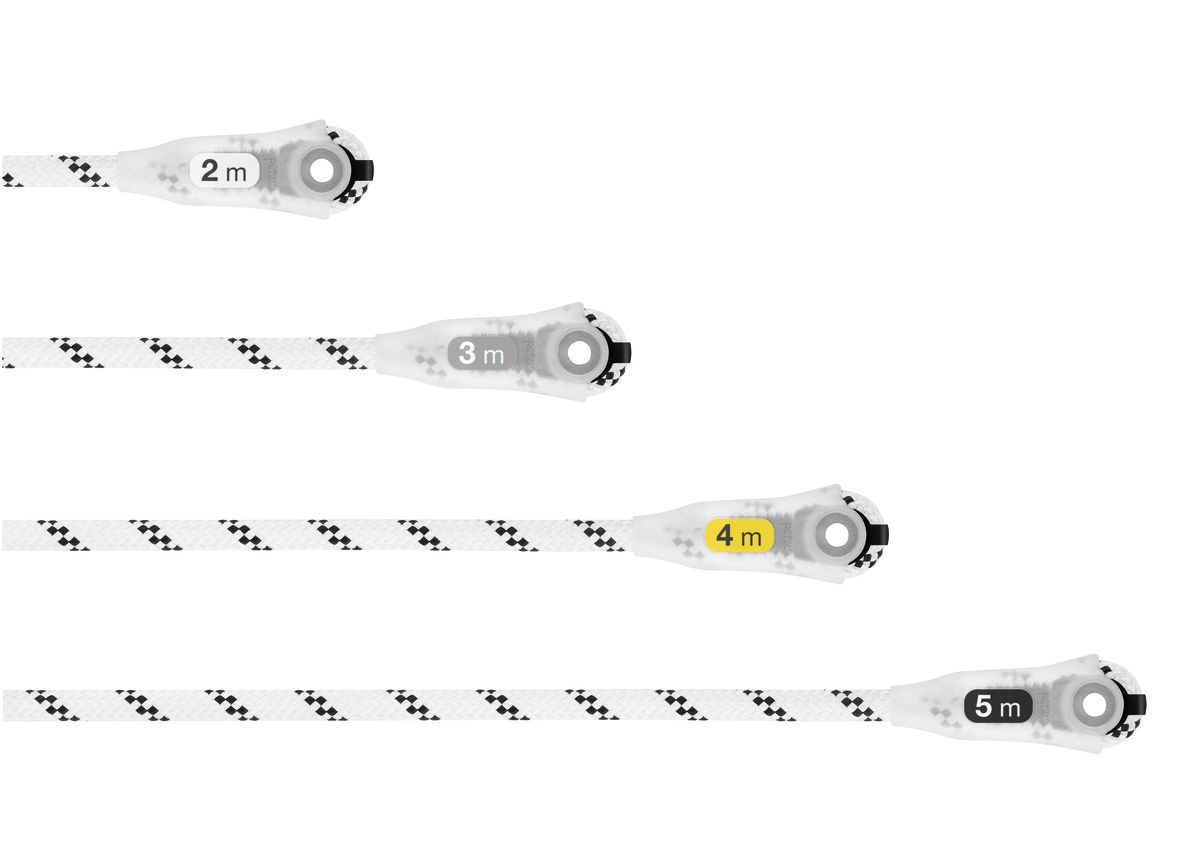

- Available in seven lengths: 2, 3, 4, 5, 10, 15 and 20 m; lanyard length can be immediately identified by a color-coded label on the connector end

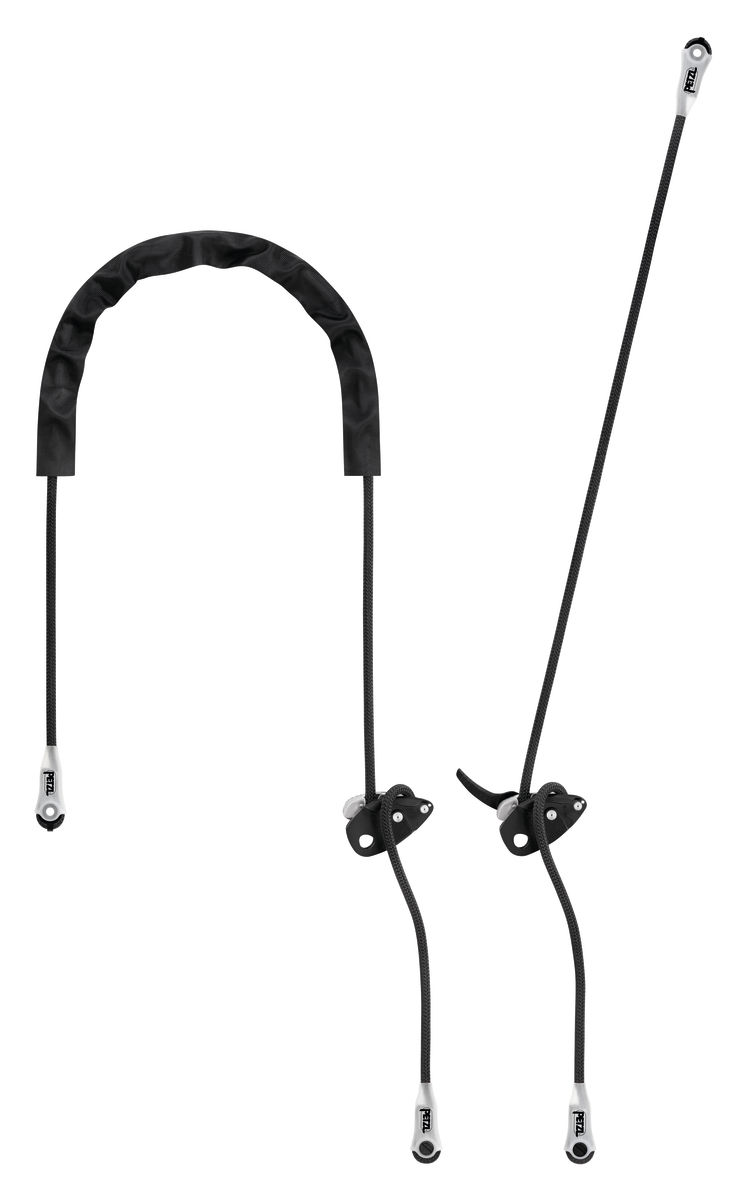

- Available in two colors: white/yellow and black
- User-repairable, the GRILLON has available spare parts to help extend its usable life
Specifications
- Material(s): Nylon, polyester, aluminum
- Certification(s): ANSI Z359.3, CSA Z259.11, CE EN 358, EAC, GB 24543/WQX
References
| References | L052AA00 | L052AA01 | L052AA02 | L052AA03 | L052AA04 | L052AA05 |
|---|---|---|---|---|---|---|
| Length | 2 m | 3 m | 4 m | 5 m | 10 m | 15 m |
| Color(s) | White/yellow | White/yellow | White/yellow | White/yellow | White/yellow | White/yellow |
| Weight | 480 g | 560 g | 640 g | 720 g | 1075 g | 1475 g |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 | 1 |
| References | L052AA06 | L052AA07 | L052AA08 |
|---|---|---|---|
| Length | 20 m | 2 m | 3 m |
| Color(s) | White/yellow | Black | Black |
| Weight | 1875 g | 480 g | 560 g |
| Guarantee | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 |
